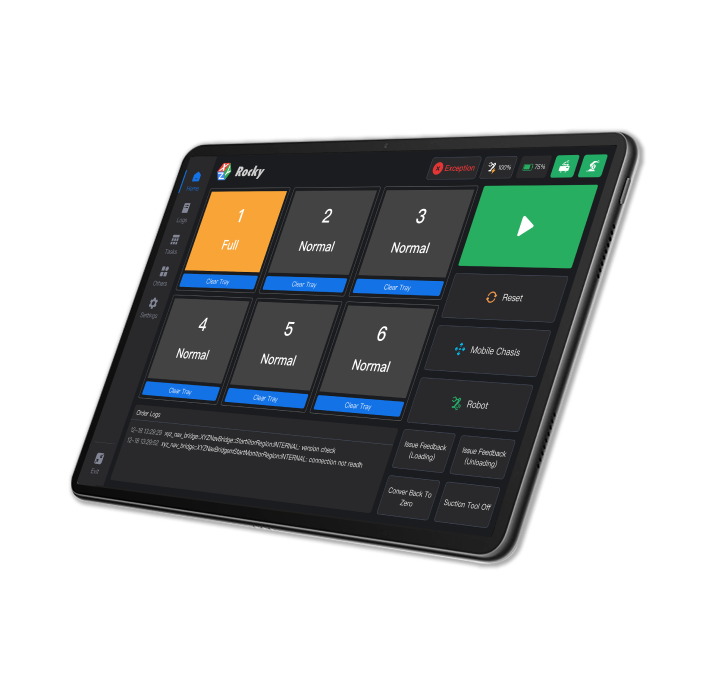

Easy Remote Control
A wireless tablet with an intuitive human-machine interface (HMI) for effortless remote control and monitoring.
RockyLight
MMR with superb case handling versatility
Versatile. Agile.

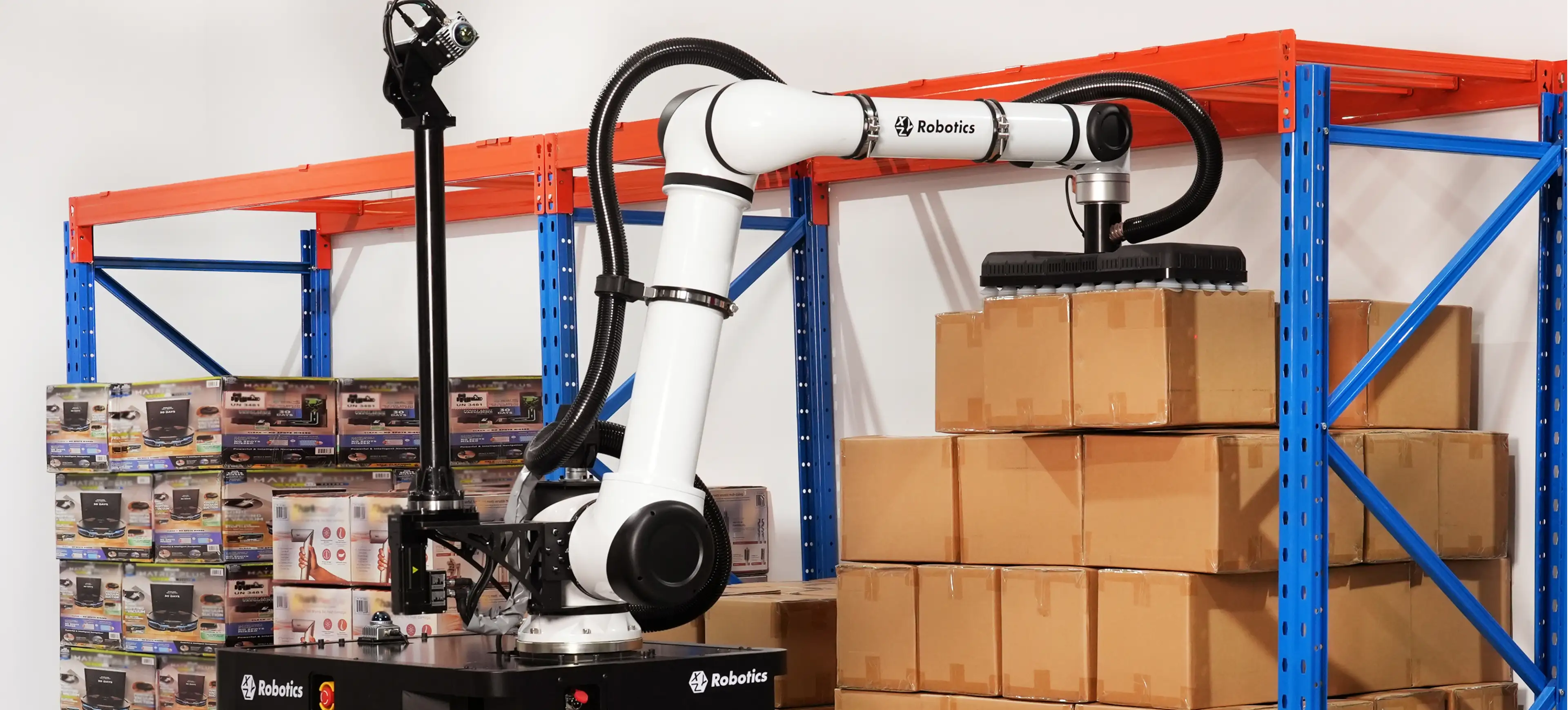

RockyLight is a versatile Mobile Manipulation Robot (MMR) with a compact design and extensive working range, ideal for various case handling applications in warehouses and distribution centers.

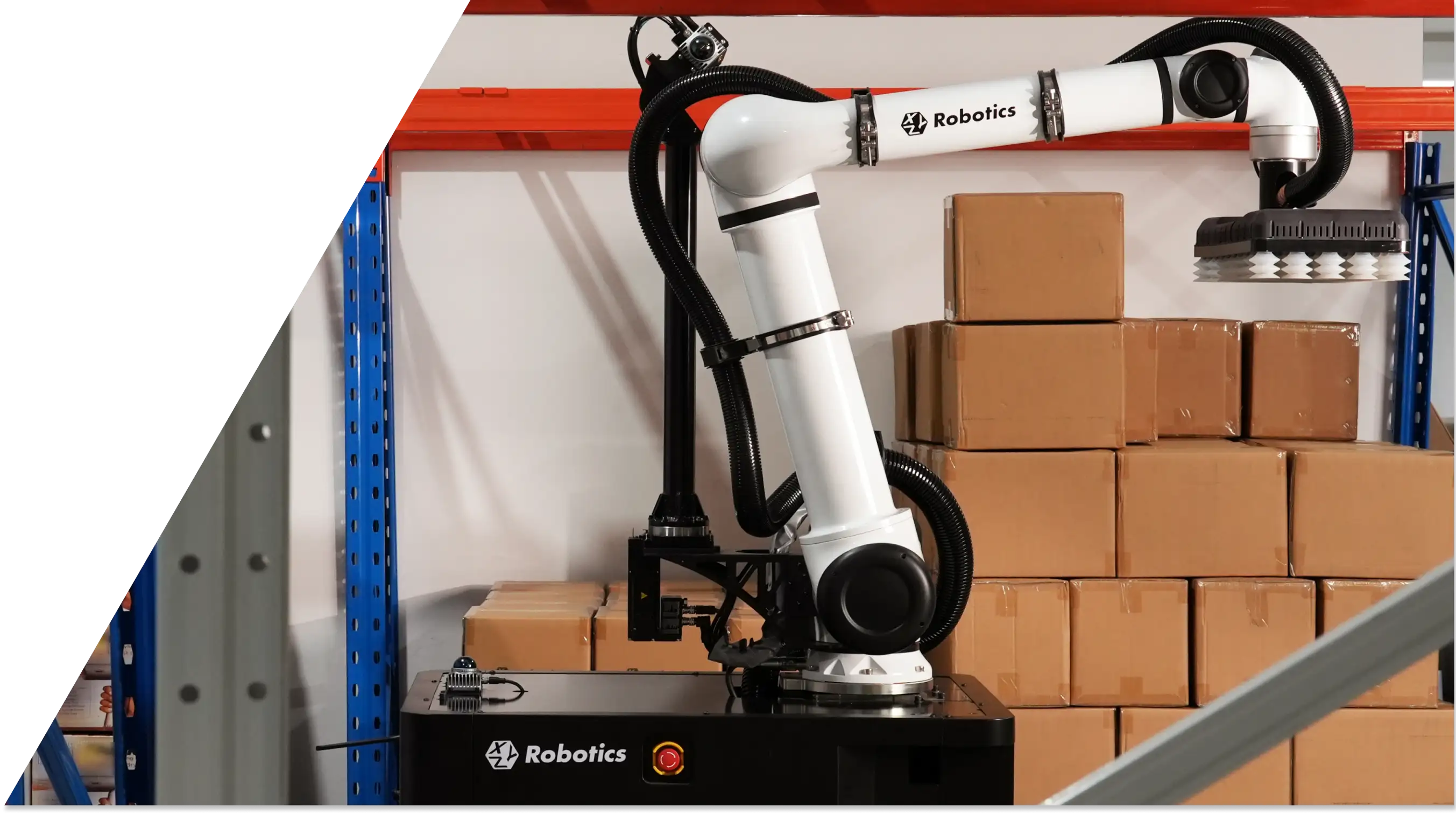

Compact
Operates in confined spaces with a small footprint. Handles pallets up to 2.2 meters high with a vertical lifting base.

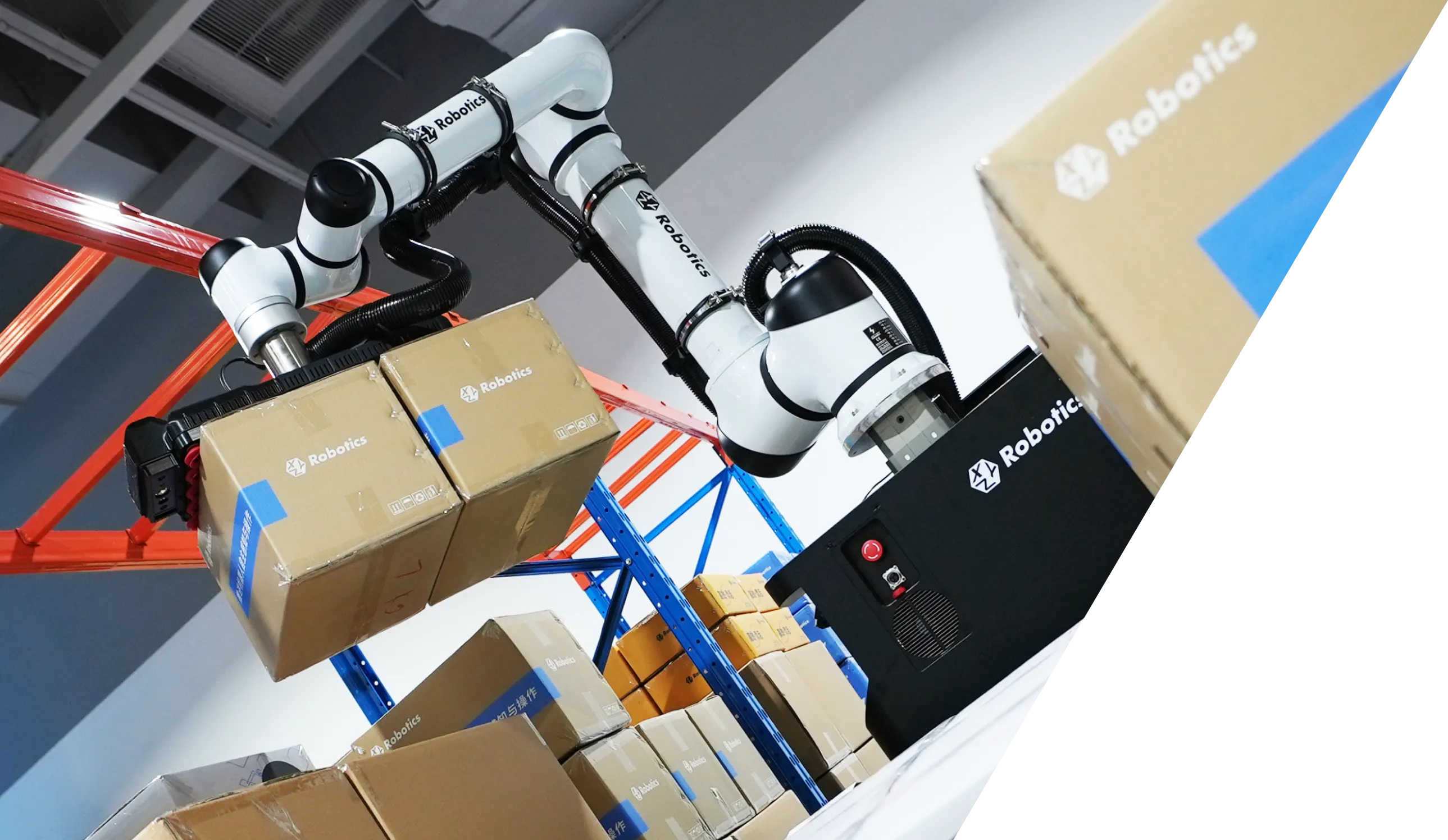

Efficient
Picks multiple cases in a single swing and allows individual placements, boosting overall efficiency.

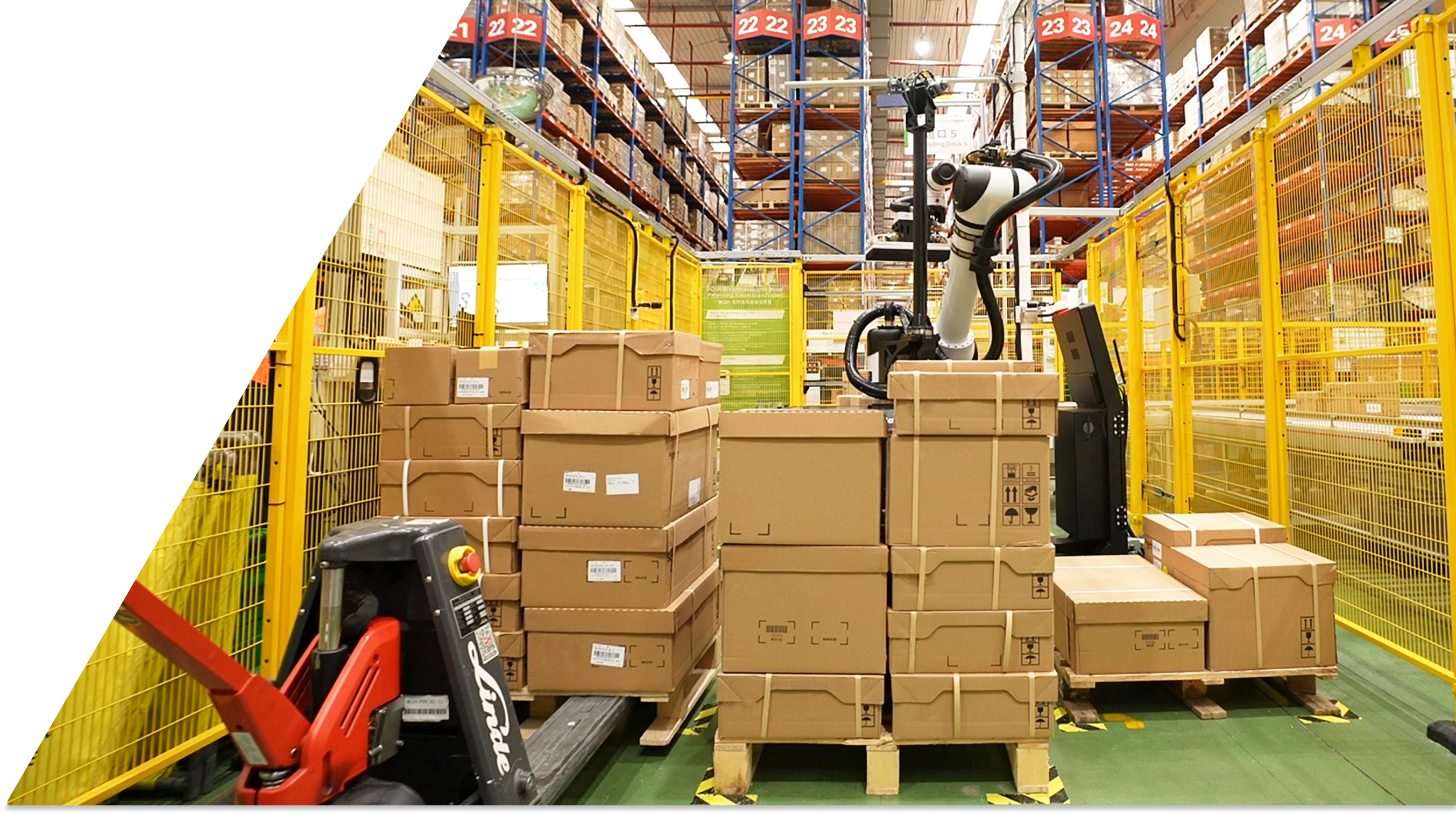

Collaborative
Collaborates with humans through prompt speed control, ensuring safe and continuous operation.

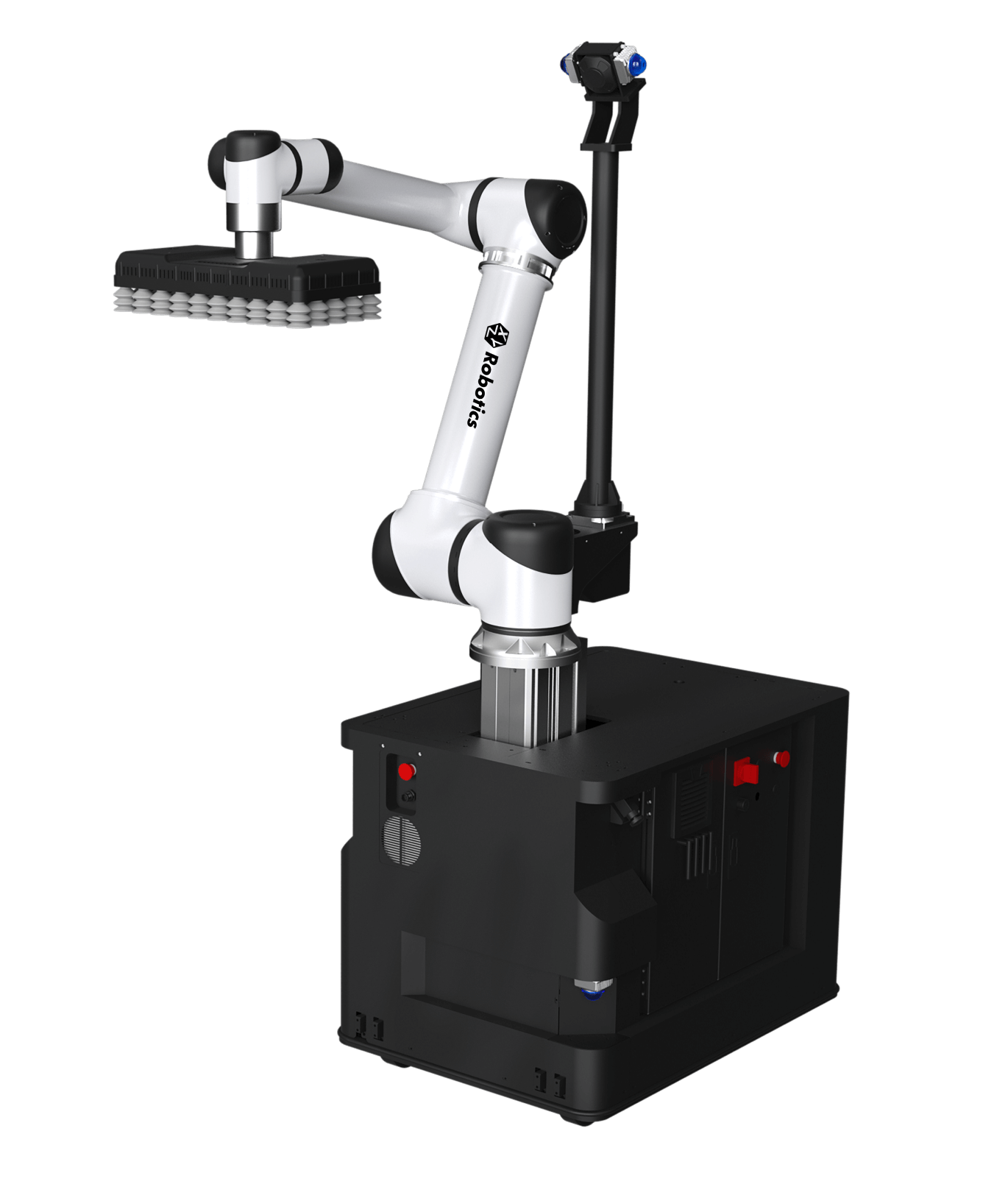

Explore Technologies Behind

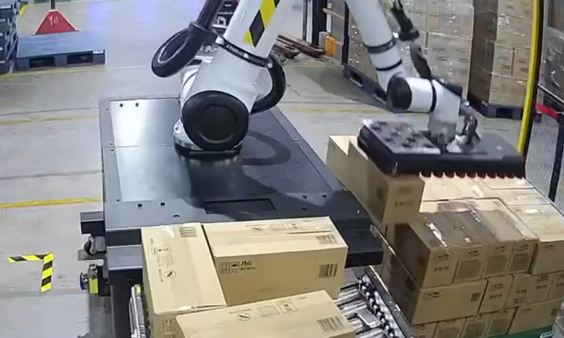

ECIC Smart Gripper
Individually controllable cups, supporting multi-picking and single placements.

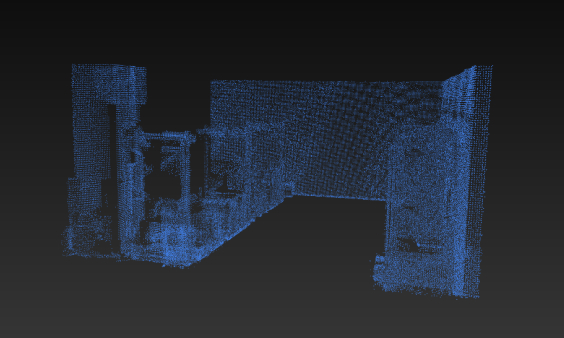

Individually controllable cups, supporting multi-picking and single placements.SLAM Navigation System
360° 3D perception for environmental awareness.

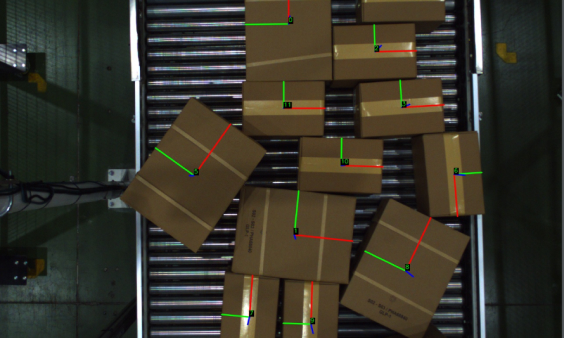

360° 3D perception for environmental awareness.3D Vision Module
Model-free vision recognition of various case types.

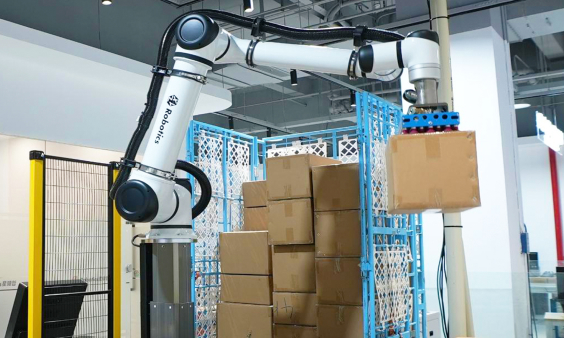

Model-free vision recognition of various case types.Vertical Lifting Base
900 mm vertical stroke for extended arm reach.

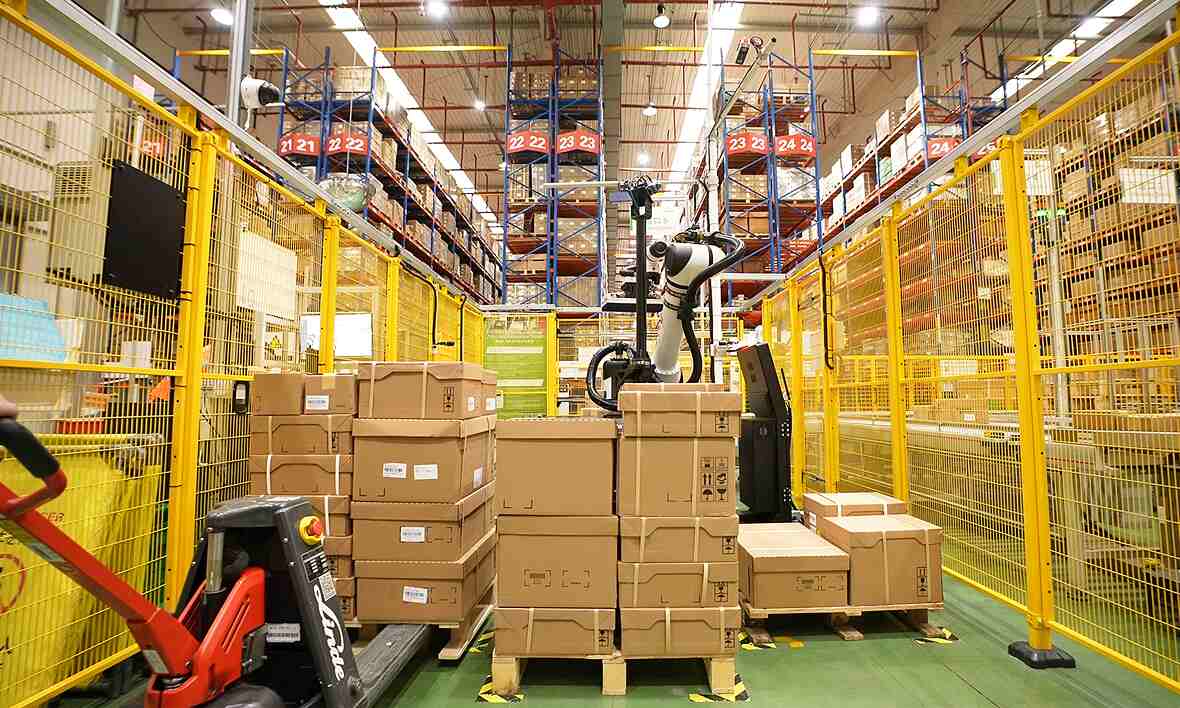

900 mm vertical stroke for extended arm reach.LiDAR-Based Safety System
Active speed control for both efficiency and workspace safety.
Active speed control for both efficiency and workspace safety.Specifications
Basics
Max Payload
25 kg
(55.1 lbs)
Footprint
1,120 mm × 800 mm
(3.67 ft × 2.62 ft)
Weight
650 kg
(1,433 lbs)
Arm Base Height
900 – 1,800 mm
(2.95 – 5.91 ft)
Arm Reach
1,800 mm
(5.91 ft)
Applicable Case Size
Side length: 100 – 800 mm
(3.94 – 31.5 in)
Applicable Pallet Size
Length ≤ 1,200 mm (3.94 ft)
Width ≤ 1,200 mm (3.94 ft)
Height ≤ 2,200 mm (7.21 ft)
Mobility
Movement
Omnidirectional
Max Speed
2 m/s
(6.56 ft/s)
Max Slope
10% (5.7°)
(without accessories）
Max Step Height
20 mm
(0.78 in)
Max Gap
50 mm
(1.97 in)
Environment
Operation Temperature
-10 – 45°C
(14 – 113° F)
Protection Class
IP20
Mixed Case Palletizing
Case Picking
